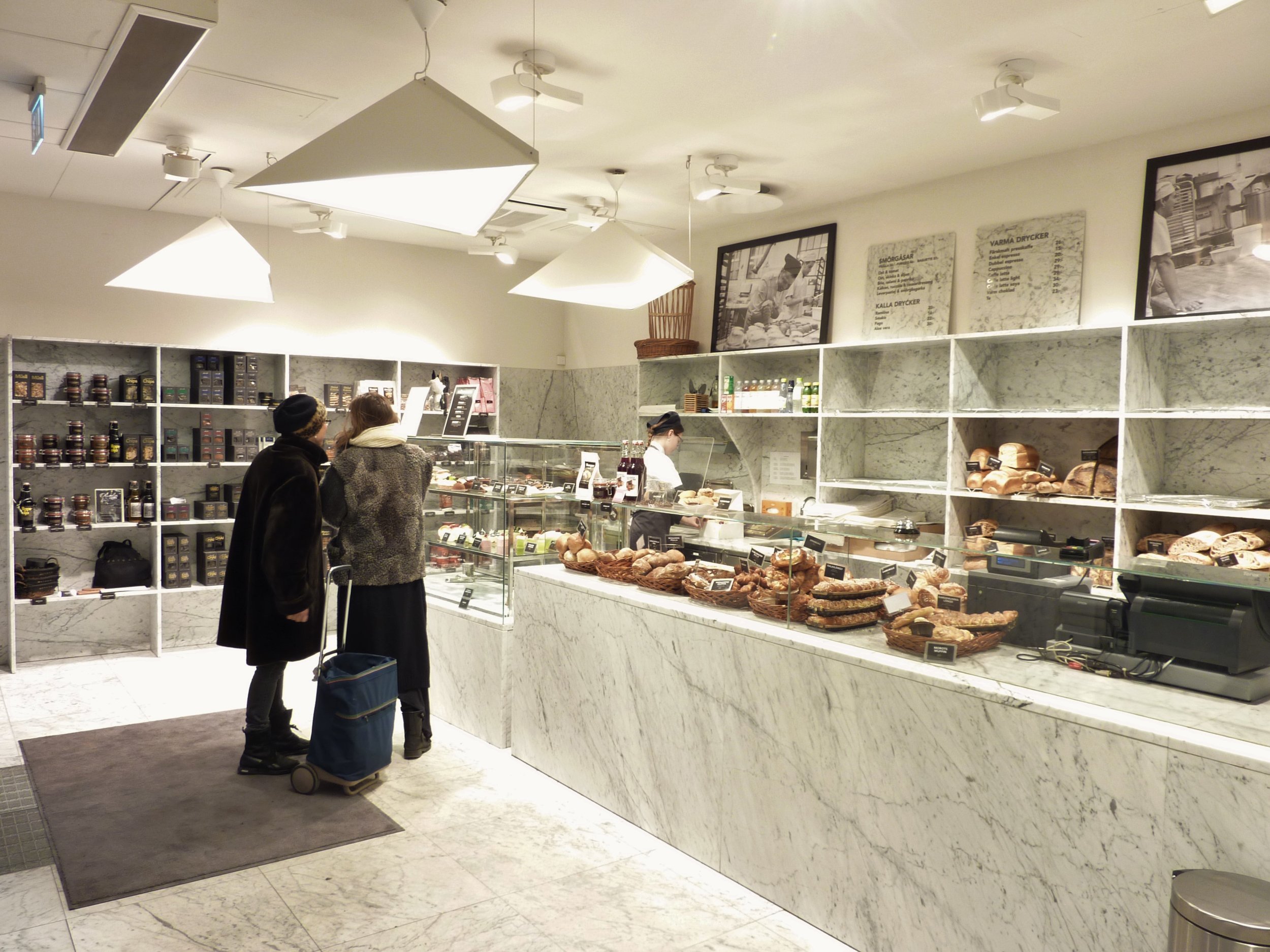

Top

Finish

Shade in painted metal. Diffuser in opal acrylic.

LED info

System power 14W - 32W. Luminaire Luminous Flux 1223LM - 4010LM (see product specification).
CCT 3000K or 4000K. SDCM 3. CRI >80.

Installation

Suspended through wire.

Connection

2 m cable with terminal block 3x4mm2. When dimmable 5x4mm2.

Classification

IP 20.

Design

Tham & Videgård 2009.

Standard colours

Other colours on request.

Product sheet

Designer

Project


			Product specification

				POWER
				KELVIN
				CRI
				COLOUR
				SIZE
				ART.

					LED

					14W/1223LM
					3000K
					>80
					White
					650
					7857101

					14W/1223LM
					3000K
					>80
					White
					650
					7857101HFF

					14W/1223LM
					3000K
					>80
					Black
					650
					7857106

					14W/1223LM
					3000K
					>80
					Black
					650
					7857106HFF

					14W/1346LM
					4000K
					>80
					White
					650
					7857101-40

					14W/1346LM
					4000K
					>80
					White
					650
					7857101-D40

					14W/1346LM
					4000K
					>80
					Black
					650
					7857106-40

					14W/1346LM
					4000K
					>80
					Black
					650
					7857106D40

					32W/3829LM
					3000K
					>80
					White
					1000
					7860301-30

					32W/3829LM
					3000K
					>80
					White
					1000
					7860301D30

					32W/3829LM
					3000K
					>80
					Black
					1000
					7860306-30

					32W/3829LM
					3000K
					>80
					Black
					1000
					7860306D30

					32W/4010LM
					4000K
					>80
					White
					1000
					7860301-40

					32W/4010LM
					4000K
					>80
					White
					1000
					7860301-D40

					32W/4010LM
					4000K
					>80
					Black
					1000
					7860306-40

					32W/4010LM
					4000K
					>80
					Black
					1000
					7860306D40

					HFF, D = Dimmable DALI or SwitchDim.

					E27 excluding light source

					Max 20W

					White
					650
					7852101

					Max 20W

					Black
					650
					7852106

					Max 20W

					White
					1000
					7852301

					Max 20W

					Black
					1000
					7852306.

Product specification
POWER	KELVIN	CRI	COLOUR	SIZE	ART.
LED
14W/1223LM	3000K	>80	White	650	7857101
14W/1223LM	3000K	>80	White	650	7857101HFF
14W/1223LM	3000K	>80	Black	650	7857106
14W/1223LM	3000K	>80	Black	650	7857106HFF
14W/1346LM	4000K	>80	White	650	7857101-40
14W/1346LM	4000K	>80	White	650	7857101-D40
14W/1346LM	4000K	>80	Black	650	7857106-40
14W/1346LM	4000K	>80	Black	650	7857106D40
32W/3829LM	3000K	>80	White	1000	7860301-30
32W/3829LM	3000K	>80	White	1000	7860301D30
32W/3829LM	3000K	>80	Black	1000	7860306-30
32W/3829LM	3000K	>80	Black	1000	7860306D30
32W/4010LM	4000K	>80	White	1000	7860301-40
32W/4010LM	4000K	>80	White	1000	7860301-D40
32W/4010LM	4000K	>80	Black	1000	7860306-40
32W/4010LM	4000K	>80	Black	1000	7860306D40
HFF, D = Dimmable DALI or SwitchDim.
E27 excluding light source
Max 20W			White	650	7852101
Max 20W			Black	650	7852106
Max 20W			White	1000	7852301
Max 20W			Black	1000	7852306.
